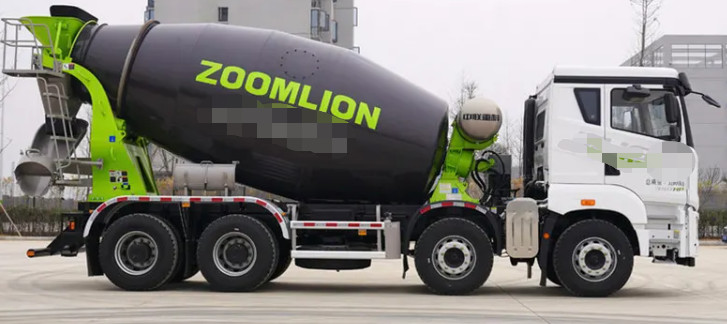

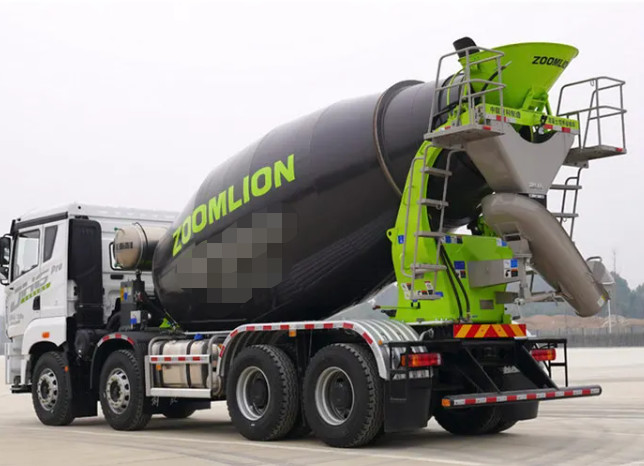

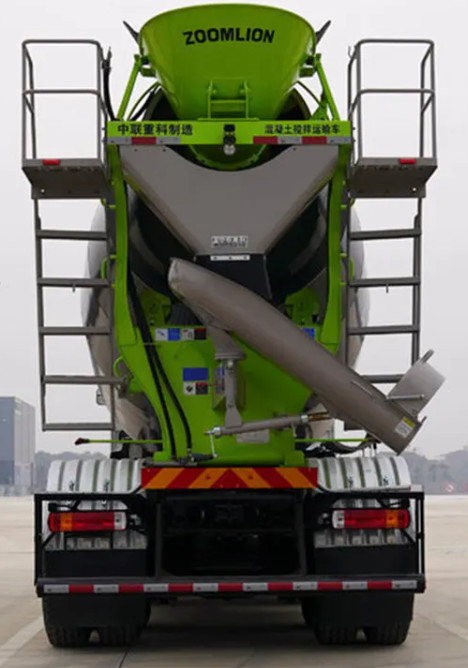

Zoomlion Used Concrete Mixer Truck 12m³
| Model | ZLJ5253GJB | |
| Overall Parameters | Rudder | Left |
| Curb Weight(kg) | 16200 | |
| GVW(kg) | 25000 | |
| Dimension (L×H×W)(mm) | 9760×2500×3960mm | |
| Wheel Base(mm) | 2022+1830mm | |
| Min. Turning Diameter(m) | ≤20 | |
| Braking Distance(V0=30km/h)(m) | ≤10(Full load); ≤9(Empty load) | |
| Engine Model | Howo | |
| Chassis | Displacement(L) | 11.596 |
| Rated Power/Rev Speed(kW/rpm) | 251/2200kW/rpm | |
| Emissions | Euro IV | |
| Gear-box | Fast 9JS150TA-B | |
| Front Axle(t) | 9 | |
| Intermediate, Rear Axle(t) | 2×16 | |
| Cab Capacity | 2 | |
| Tyre | 12.00R20 | |
| Agitator (m3) | 7-68 | |
| Drum | Feeding Speed(m3/min) | ≥8 |
| Discharge Speed(m3/min) | ≥5 | |
| Slump(mm) | 50 － 210 | |
| Water Tank Capacity(L) | 800 | |
| Water Pressure(MPa) | 0.35-0.38 | |
| Reducer | PMP PMB7.1 | |
