| Product Discription | |||

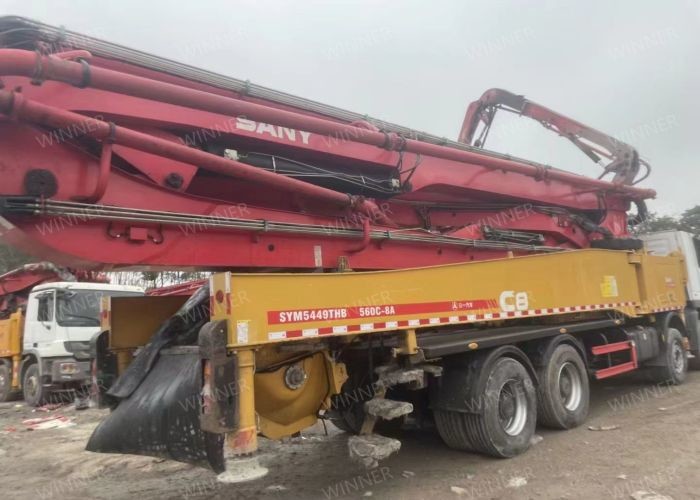

| Pump Type | SYM5449THB560C-8A | ||
| Concrete pump brand | Sany | ||
| Engine model | OM501LA.Ⅳ/4 | ||
| Outline dimensions (Length′ Width ′Height) | 13.85 m × 2.5 m × 4 m | ||
| Fuel type | Diesel fuel | ||
| Engine emission standard | Eur V | ||
| Engine Power | 320/1800 kW/rpm | ||

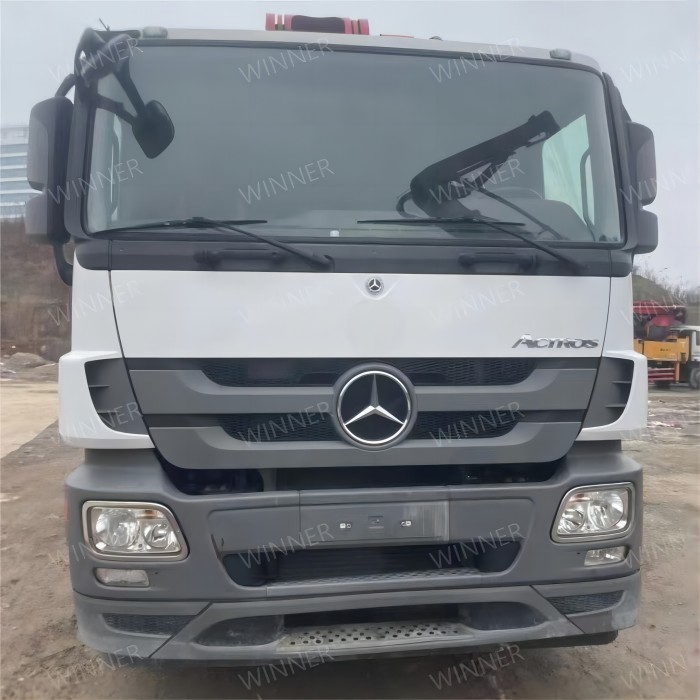

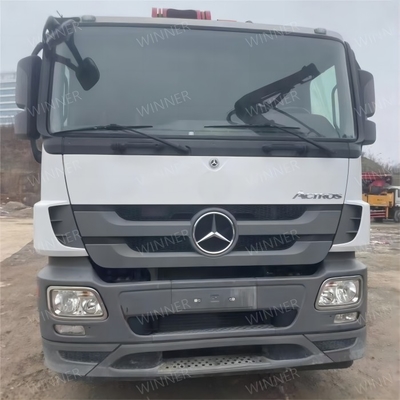

| Chassis | BENZ Actros 4144 8X4 | ||
| Empty weight | 44000 kg | ||
| Vertical reach | 56 m | ||
| Horizontal reach | 51 m | ||
| Reach depth | 36.6 m | ||
| Unfolding reach | 15.2 m | ||
| 1st section-Length | 11.39m | ||
| 1st section-Articulation | 90° | ||
| 2nd section-Length | 9.23m | ||
| 2nd section-Articulation | 180° | ||
| 3rd section-Length | 8.75m | ||
| 3rd section-Articulation | 180° | ||
| 4th section-Length | 11.07m | ||
| 4th section-Articulation | 240° | ||
| 5th section-Length | 8.08m | ||
| 5th section-Articulation | 210° | ||
| 6th section-Length | 3.35m | ||
| 6th section-Articulation | 110° | ||
| Rotation | ±360 º | ||
| Outrigger spread L-R-Front | 9.47m | ||
| Outrigger spread L-R-Rear | 12.68m | ||
| Output (Low/High-pressure) | 180/125 m³/h | ||
| Pressure (Low/High-pressure) | 8.3/12 Mpa | ||
| Max. strokes per minute (Low/High-pressure) | 29/19 times/min | ||
| Delivery cylinder Parameter | φ 260x2100 mm | ||
| Oil pump | Rexroth &Hawei | ||
| Hydraulic system | Open | ||
| Hydraulic system pressure | 32 Mpa | ||
| Hydraulic tank capacity | 680 L | ||
| Water tank capacity | 620 L | ||
| Delivery Pipe Size | φ 125mm | ||
| Fuel tank capacity | 400 L | ||
