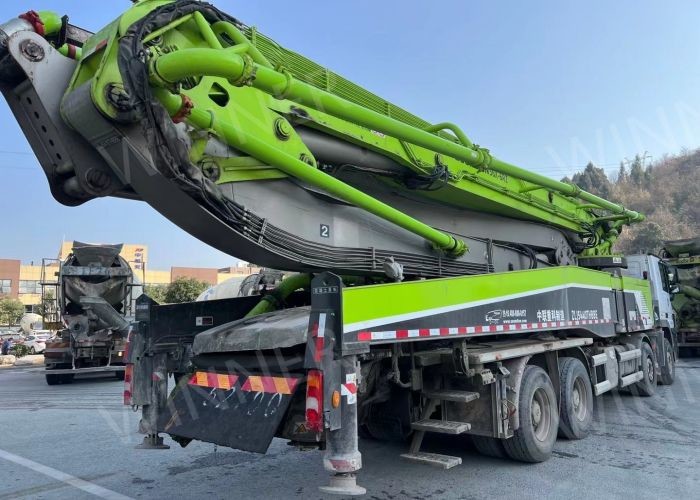

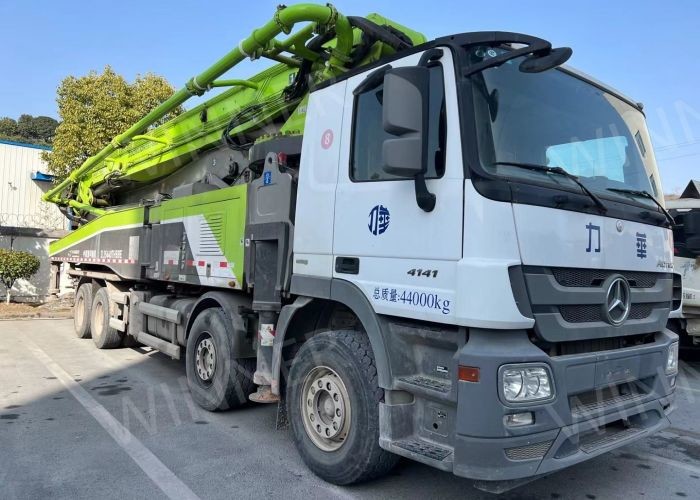

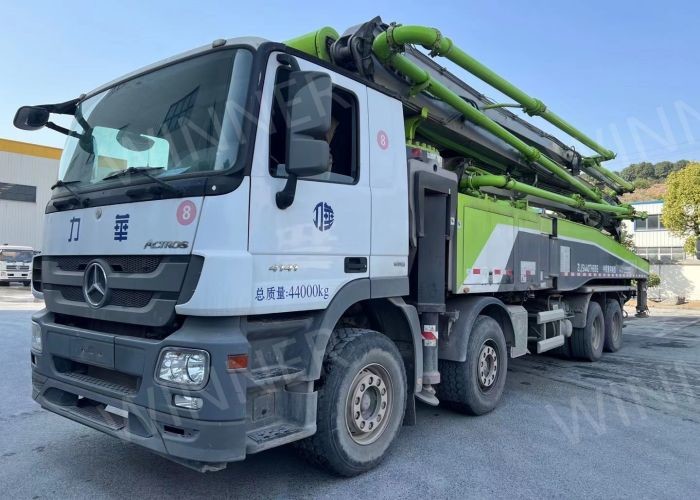

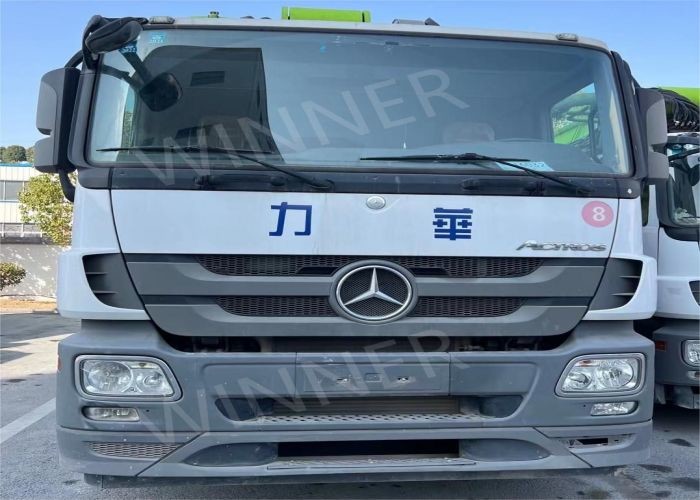

2019 Mode Zoomlion 56m Pump
| Brand | Zoomlion | |
| Chassis Brand | Mercedes Benz Actros 4144 | |
| Model | ZLJ5440THBK 56X-6RZ | |
| Released date | 2019 | |
| Chassis | Cabin | Actros 4144 |
| Drive mode | 8*4 | |
| Engine model | OM501LA.V/4 | |
| Emission standard | Euro V | |
| Max output power(Kw/rpm) | 300/1800 | |
| Max torque(N·m/rpm) | 2000/1080 | |
| Transmission model | RTLO16918B 18 forward | |
| 4 reverse | ||
| Rear axle: ratio/loading capacity | V Rod Left Rear/23.4 tons | |
| Braking system | Full air,dual circuit | |
| Wheelbase(mm) | 2020+4280+1350 | |
| Tire | 315/80R22.5 | |
| GVW (Kg) | 44000 | |
| Overall dimension(mm) | 13860×2500×4000 | |
| Boom&Pump system | Vertical reach | 56m/6 section |
| Horizontal reach | 51m | |
| Delivery Cylinder |
260X2100mm |
|
| Output (Low/High-pressure) | 180/120m³/h | |
| Pressure (Low/High-pressure) | 8.3/12Mpa | |
