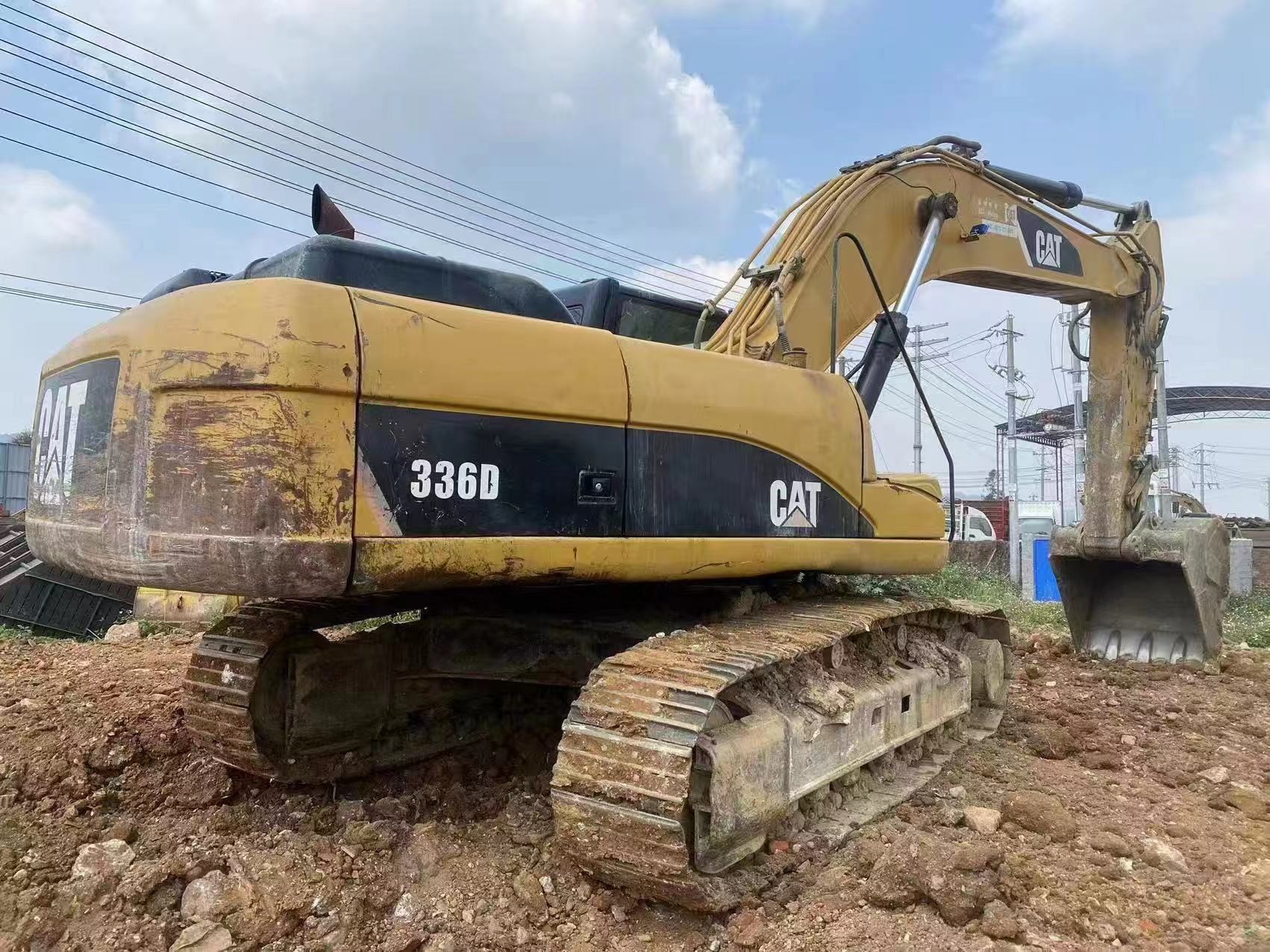

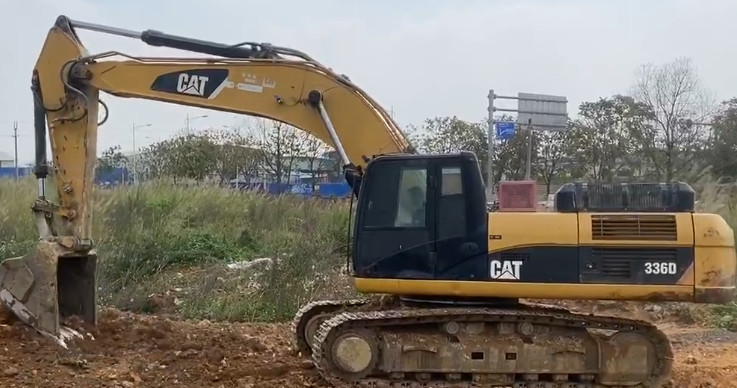

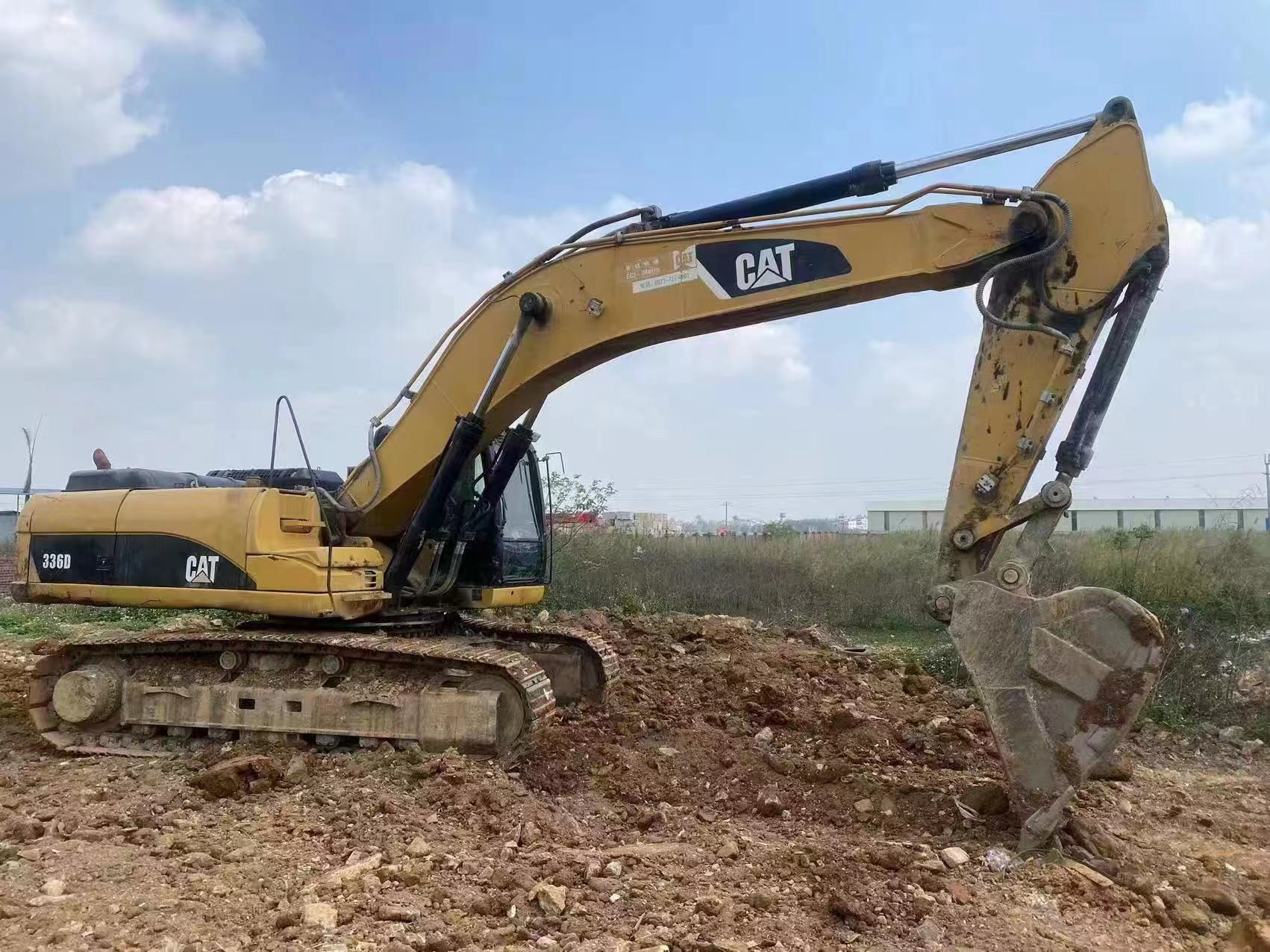

CAT 336D Used Crawler Excavator 195kw Engine Power
| CAT Crawler Excavator 336D | Unit | Value | |
| Key parameters | Net Power | kW | 195 |
| Operating Weight | Kg | 33900 | |
| Max.Digging depth | mm | 7520 | |
| Engine | Model | Cat C7.1 | |
| Bore | mm | 105 | |
| Stoke | mm | 135 | |
| Hydraulic system | Max.flow | L /min | 559 |
| Max.Pressure-Equipment | Kpa | 35000 | |
| Max.Pressure- Travel | Kpa | 35000 | |
| Max.Pressure-Swing | Kpa | 28000 | |
| Swing Mechianism | Swing Speed | r/min | 8.74 |
| Max. Swing Torque | kN-m | 137 | |
| Dimensions | Boom | Reach 6.5 m (21'4") | |
| Stick | Reach 3.2 m (10'6") | ||
| Bucket | HD 1.88 m³ (2.46 yd³) | ||
| Shipping Height - Top of Cab | mm | 3170 | |
| Handrail Height | mm | 3160 | |
| Shipping Length | mm | 11170 | |
| Transport Width | mm | 3190 | |
| Service Refill Capacities | Fuel Tank Capacity | L | 600 |
| Cooling System | L | 19 | |
| Engine Oil | L | 20 | |
| Swing Drive - Each | L | 18 | |
| Final Drive - Each | L | 8 | |
| Hydraulic System - Including Tank | L | 373 | |
| Hydraulic Tank | L | 161 | |
