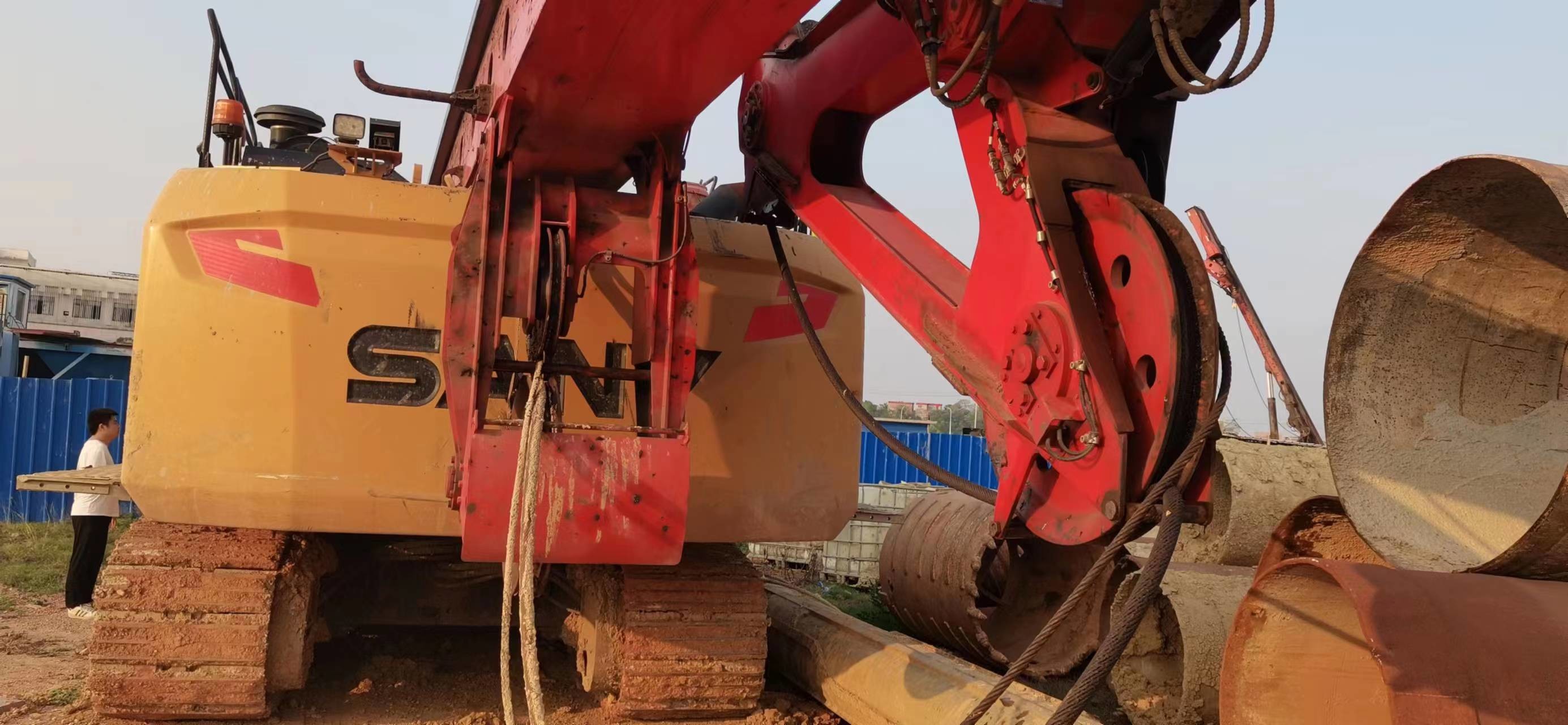

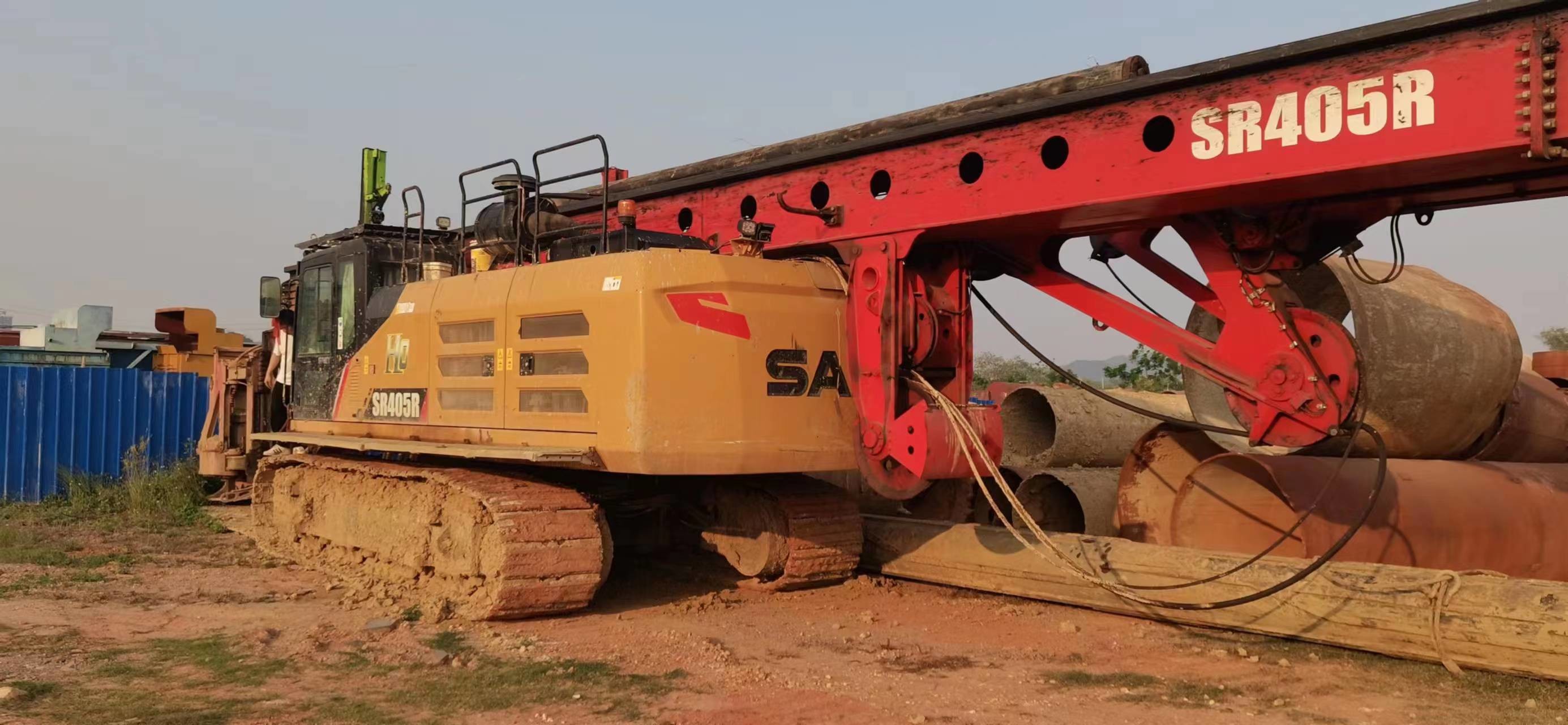

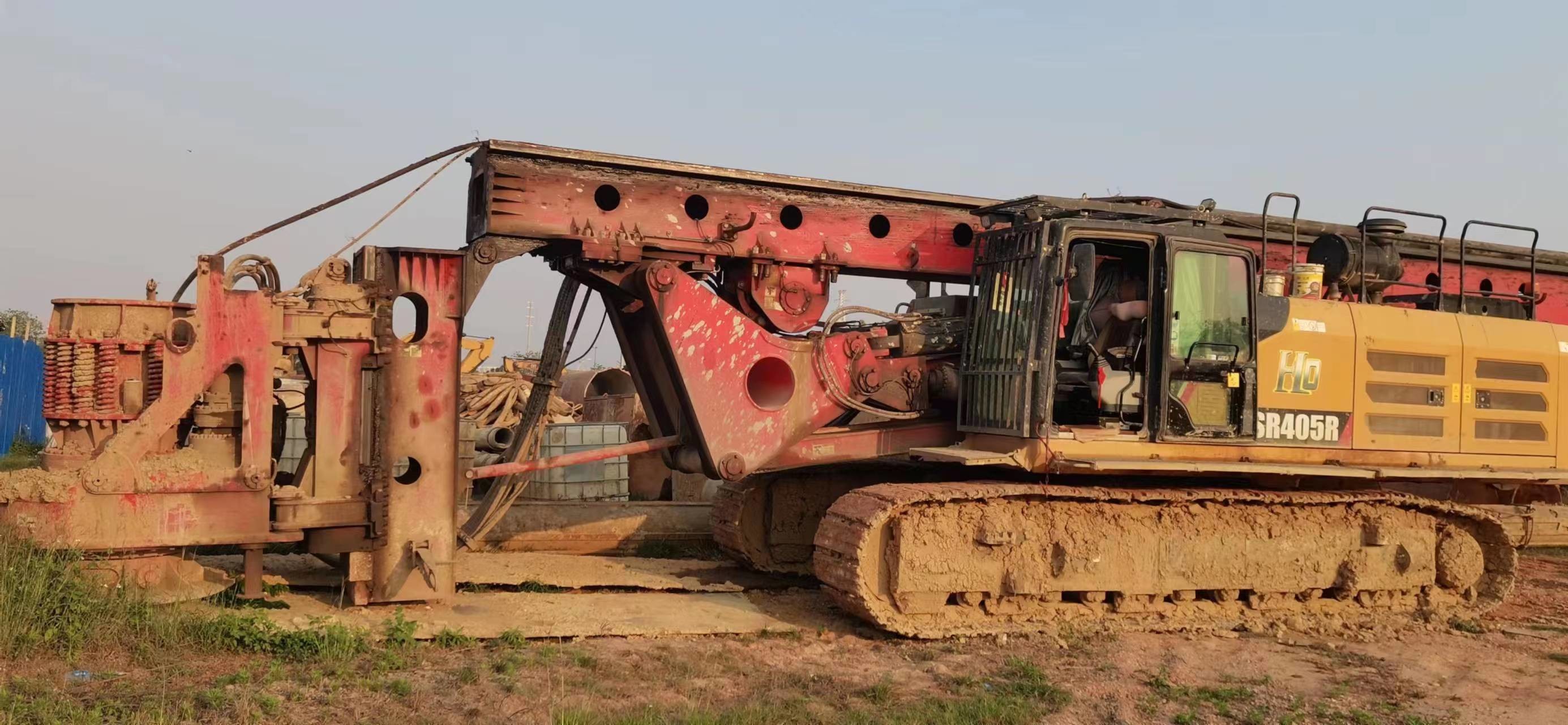

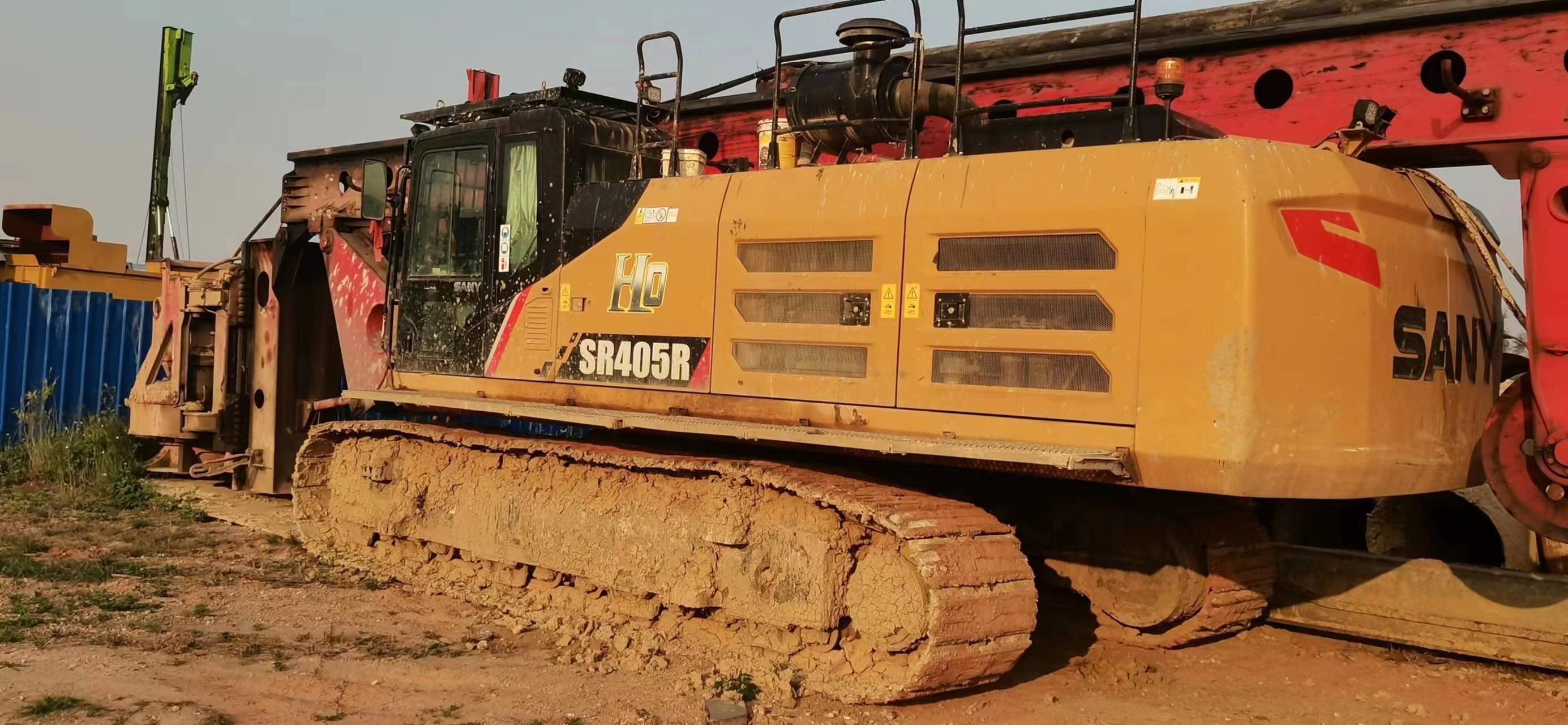

Sany SR405R 2020 Used Rotary Drilling Rig 5~ 24 Rpm ,377KW
| Product Discription | |||
| Used Rotary Drilling Rig SR360R-H10 | Unit | Parameter | |
| Pile | Max.Pile diameter | mm | 2500 |
| Max. Pile depth | m | 106/85 | |
| Rotary Drive | Rated output torque | KN-m | 405 |
| Rated Speed | rpm | 5~25 | |
| Crowd System | Crowd Force | KN | 350 |
| Line Pull | KN | 400 | |
| Stroke | mm | 13000 | |
| Main Winch | Lifting Capacity | KN | 400 |
| Ripe Diameter | mm | 36 | |
| Max. line speed | m/min | 75 | |
| Main Chassis | Base Engine | Isuzu 6WG1 | |
| Engine power | KW/RPM | 300/1800 | |
| Emission | Euro III | ||
| Overall | Overall height | mm | 3660 |
| Operating weight | kg | 131000 | |
| Transport Width | mm | 3500 | |
| Transport Height | mm | 20110 | |
