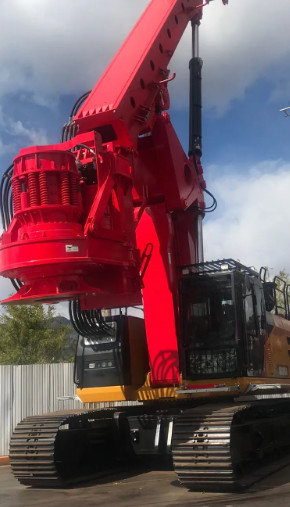

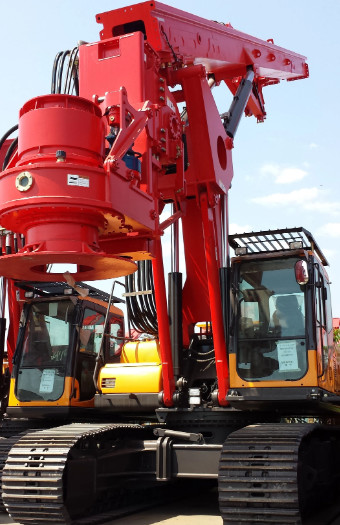

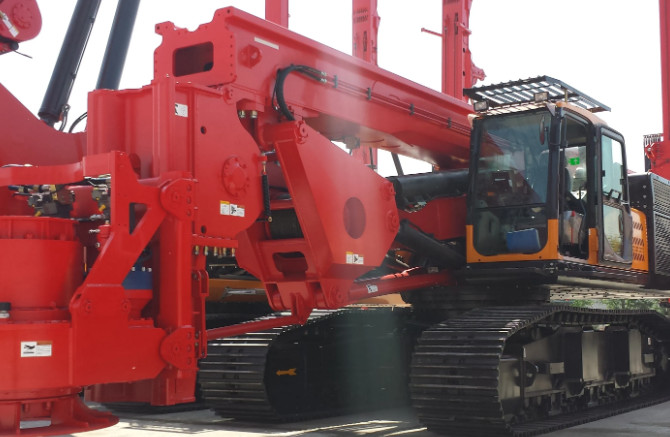

SANY SR415R 2022 Used Rotary Drilling Rig 7Rpm-21Rpm 415KW
|
Sany Used Rotary Drilling Rig SR415R Model 2022 |
|||
|
Product Discription |
Unit | Parameter | |
| Pile | Max.Pile diameter | mm | 3000 |
| Max. Pile depth | m | 110/90 | |
| Rotary Drive | Rated output torque | KN-m | 415 |
| Rated Speed | rpm | 7~21 | |
| Crowd System | Crowd Force | KN | 360 |
| Line Pull | KN | 360 | |
| Stroke | mm | 6000 | |
| Main Winch | Lifting Capacity | KN | 520 |
| Wire rope diameterr | mm | 40 | |
| Max. line speed | m/min | 63 | |
| Main Chassis | Base Engine | ISUZU 6WG1 | |
| Engine power | KW | 377 | |
| Emission Standard | Tier III | ||
| Overall | Overall height | mm | 29700 |
| Operating weight | kg | 1450000 | |
| Transport Width | mm | 3600 | |
| Transport Height | mm | 3800 | |
