The SR220C Rotary Drilling Rigg is very suitable for the client with fast line speed of main rope to ensure high drilling efficiency in hard soil layer, high-speed rail, large buildings and other large hole foundation fields.
|

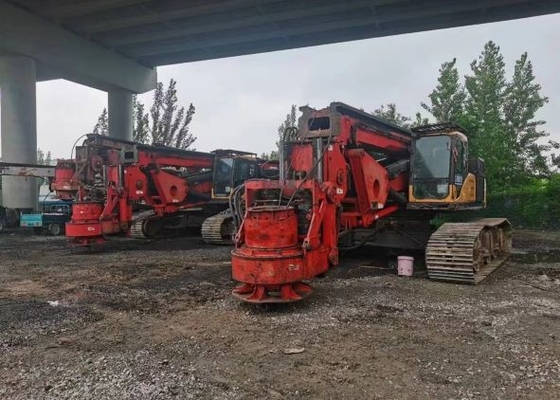

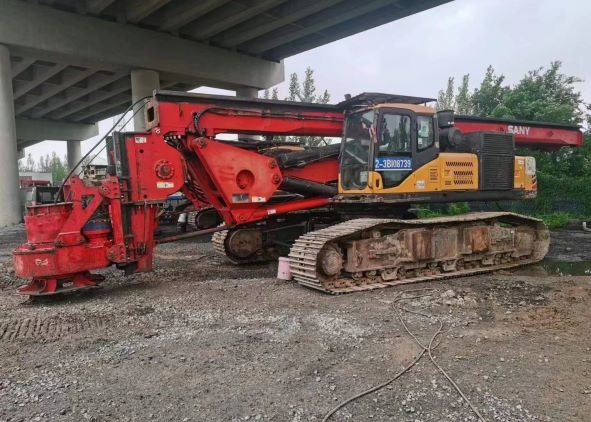

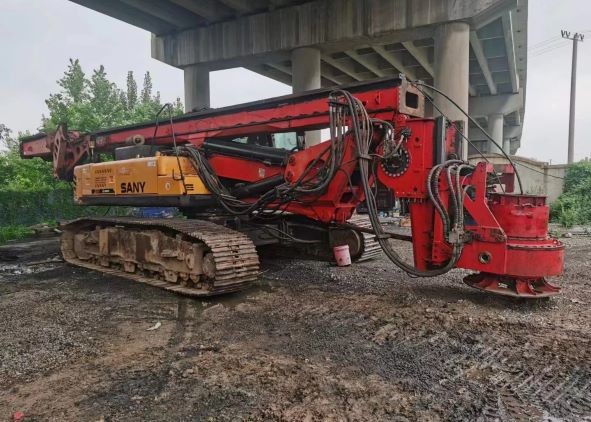

Sany Used Rotary Drilling Rig SR220C Model 2014 |
|||
|
Product Discription |
Unit | Parameter | |
| Pile | Max.Pile diameter | mm | 2000/1500 |
| Max. Pile depth | m | 65/50 | |
| Rotary Drive | Rated output torque | KN-m | 220 |
| Rated Speed | rpm | 5~22 | |
| Crowd System | Crowd Force | KN | 220 |
| Line Pull | KN | 260 | |
| Stroke | mm | 15000 | |
| Main Winch | Lifting Capacity | KN | 80 |
| Wire rope diameterr | mm | 20 | |
| Max. line speed | m/min | 70 | |

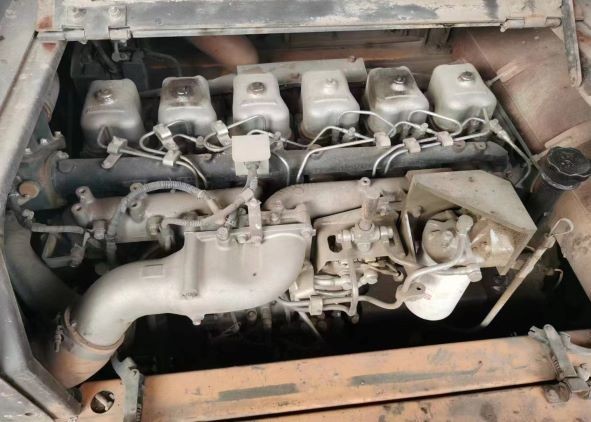

| Main Chassis | Base Engine | ISUZU 6UZ1 | |
| Engine power | KW/rpm | 257/2000 | |
| Engine displacement | 9.84/L | ||
| Overall | Overall height | mm | 15084 |
| Operating weight | kg | 74000 | |
| Transport Width | mm | 3190 | |
| Transport Height | mm | 3620 | |
