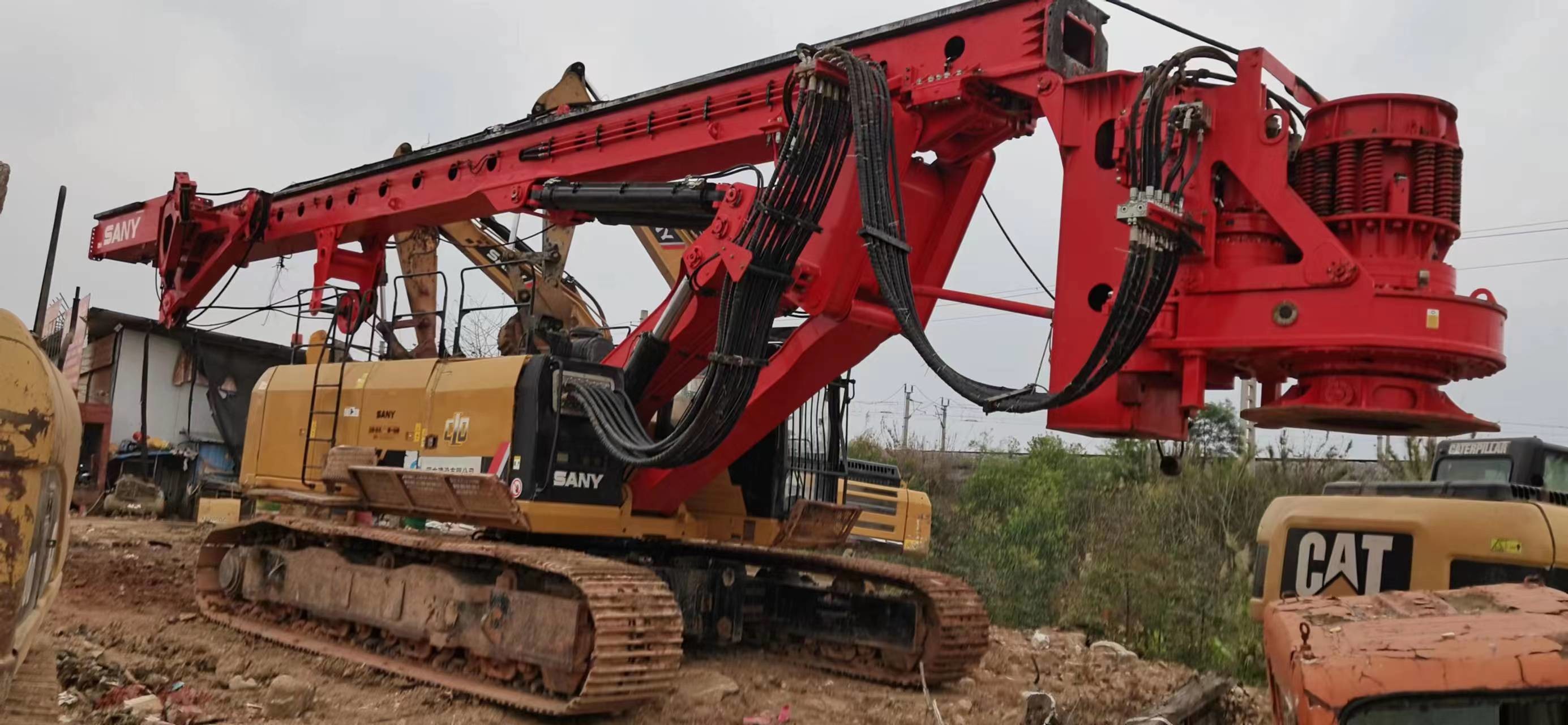

SANY SR360H 2018 Used Rotary Drilling Rig
|
Sany Used Rotary Drilling Rig SR360H Model 2018 |
|||
|
Product Discription |
Unit | Parameter | |
| Pile | Max.Pile diameter | mm | 2500 |
| Max. Pile depth | m | 100/65 | |
| Rotary Drive | Rated output torque | KN-m | 360 |
| Rated Speed | rpm | 5~24 | |
| Crowd System | Crowd Force | KN | 290/334 |
| Line Pull | KN | 335 | |
| Stroke | mm | 6000 | |
| Main Winch | Lifting Capacity | KN | 335 |
| Wire rope diameterr | mm | 36 | |
| Max. line speed | m/min | 20 | |
| Main Chassis | Base Engine | ISUZU 6WG1 | |
| Engine power | KW | 300 | |
| Emission Standard | Tier III | ||
| Overall | Operating dimension Length | mm | 9772 |
| Operating dimension width | mm | 4860 | |
| Operating dimension height | mm | 27314 | |
| Operating weight | kg | 120000 | |
