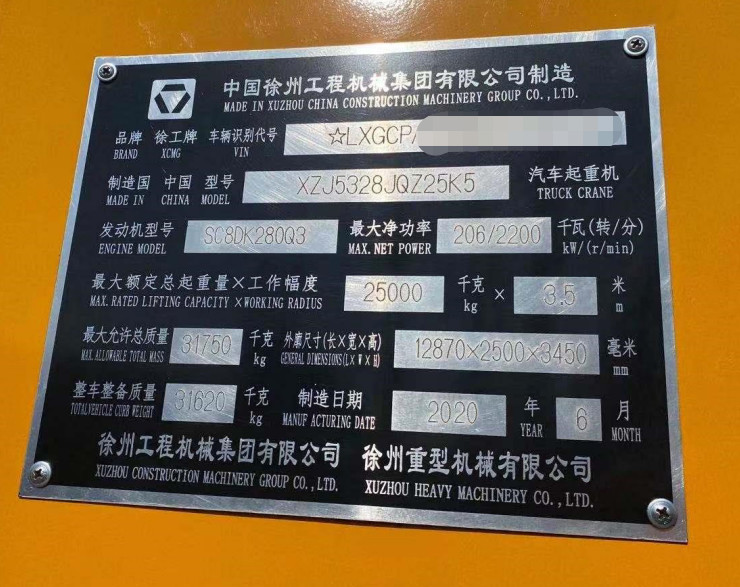

| XCMG XZJ5328JQZ25K5 Main Parameter | |||
| Part Descreption | Parameter | ||
| Capacity | Max. lifting capacity | 25 t | |
| Dimensions | Overall length/width/height | mm | 12870*2500*3450 |
| Axle distance | mm |
4425+1350
|
|
| Gross weight | kg | 31620 | |
| Power | Max. engine power | KW | 206/213 |
| Performance |
Fuel
|
diesel fuel
|
|
|
Environmental standard
|
Euro 3
|
||
|
Maximum speed
|
km/h |
80
|
|
| Main Parameters |
Curb weight
|
31620 kg
|
|
|
Gross vehicle weight rating
|
31750 kg
|
||
| Axle load distribution |
6550 kg
|
||
|
Number of axles
|
3 | ||
| Wheelbase |
4425+1350 mm
|
||
| Front track |
2074 mm
|
||
|
Rear track
|
1834 mm
|
||
| Front/rear overhang |
2405 mm / 1890 mm
|
||
|
Approach / departure angle
|
16 / 13, 15 / 13 deg.
|
||
|
Tyres and Wheels
|
Number of tyres
|
10 | |
|
Tyres dimension
|
11.00-20, 11.00R20
|
||
|
Seating capacity
|
2 | ||
|
Steering control
|
steering wheel
|
||
