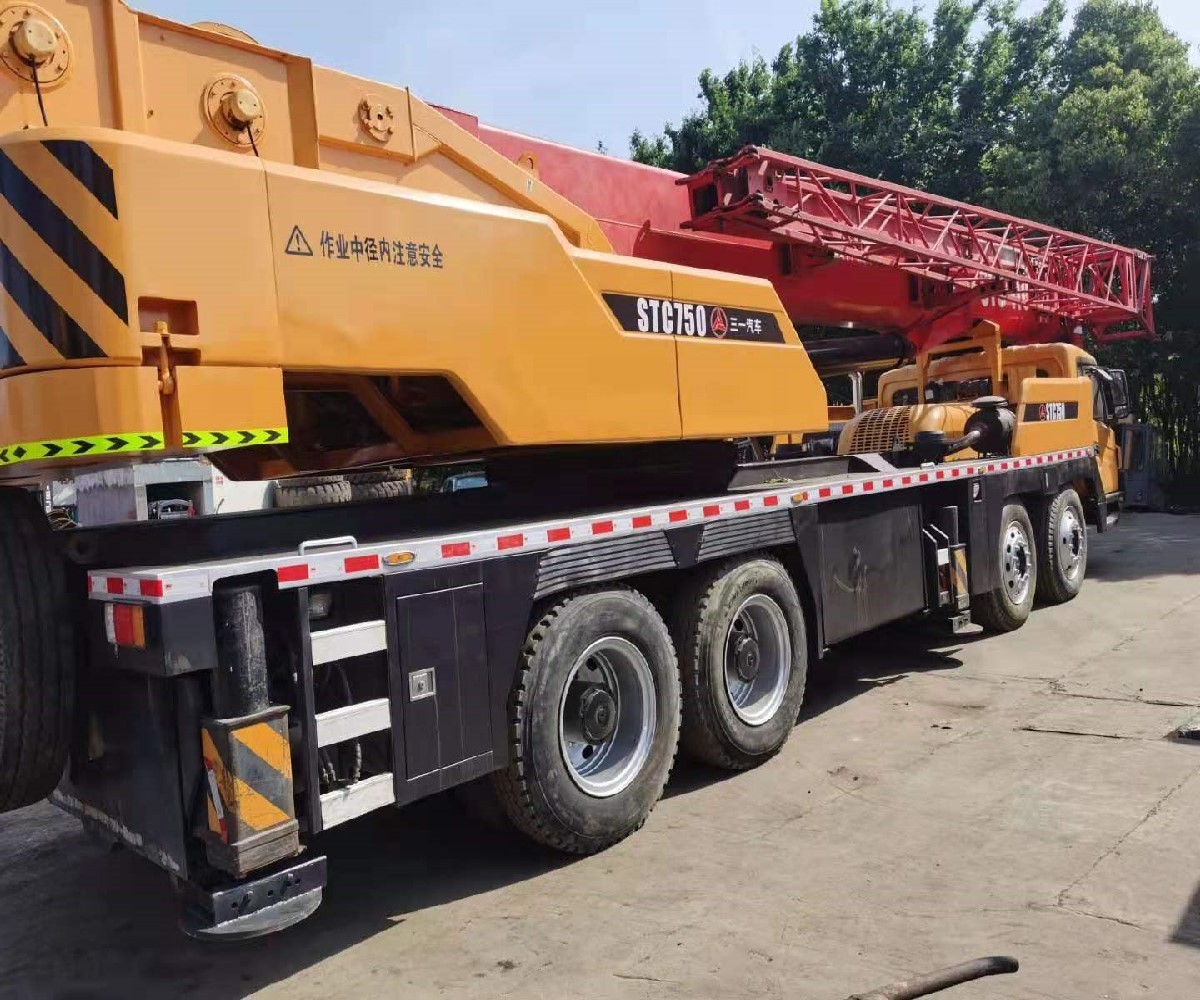

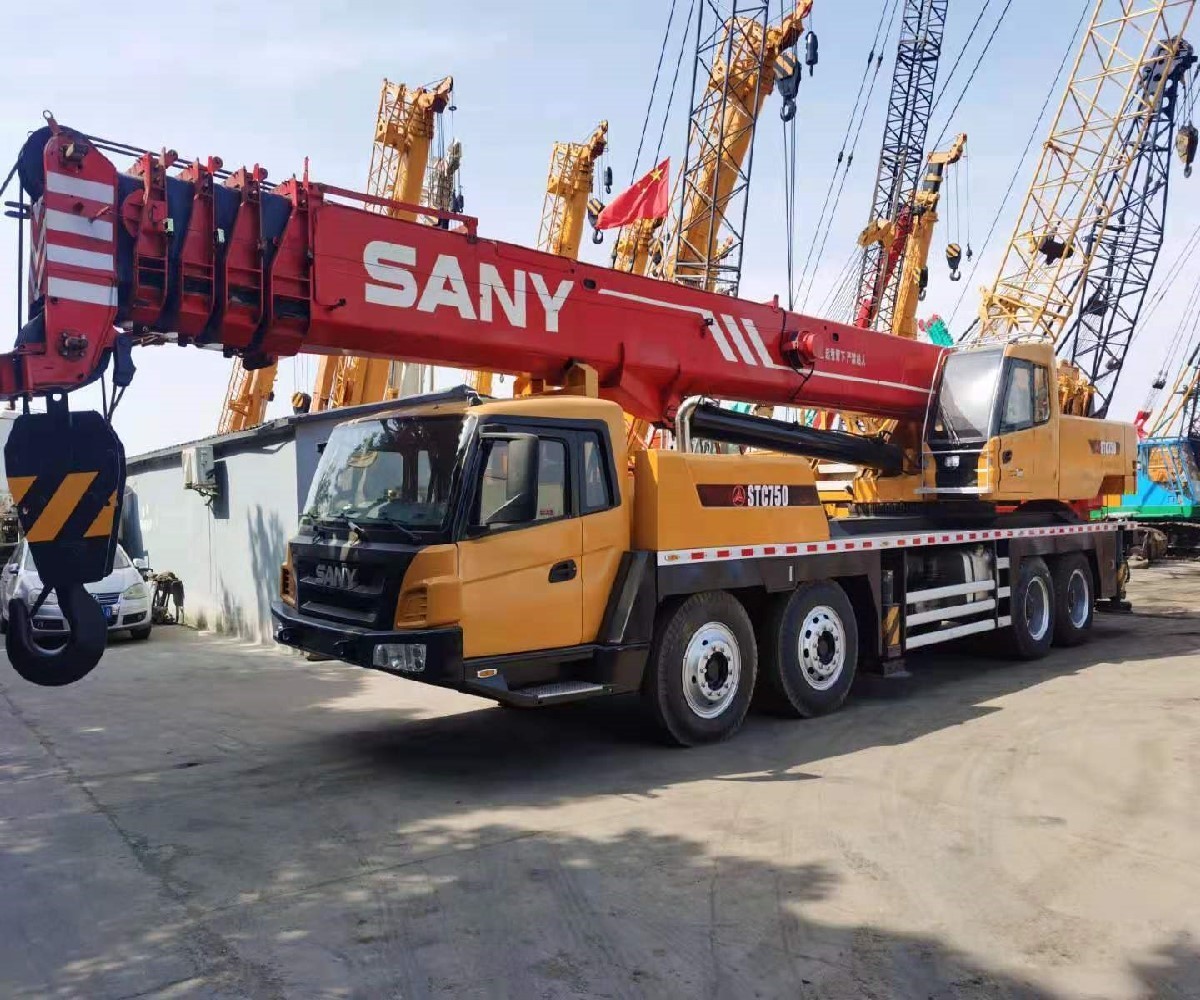

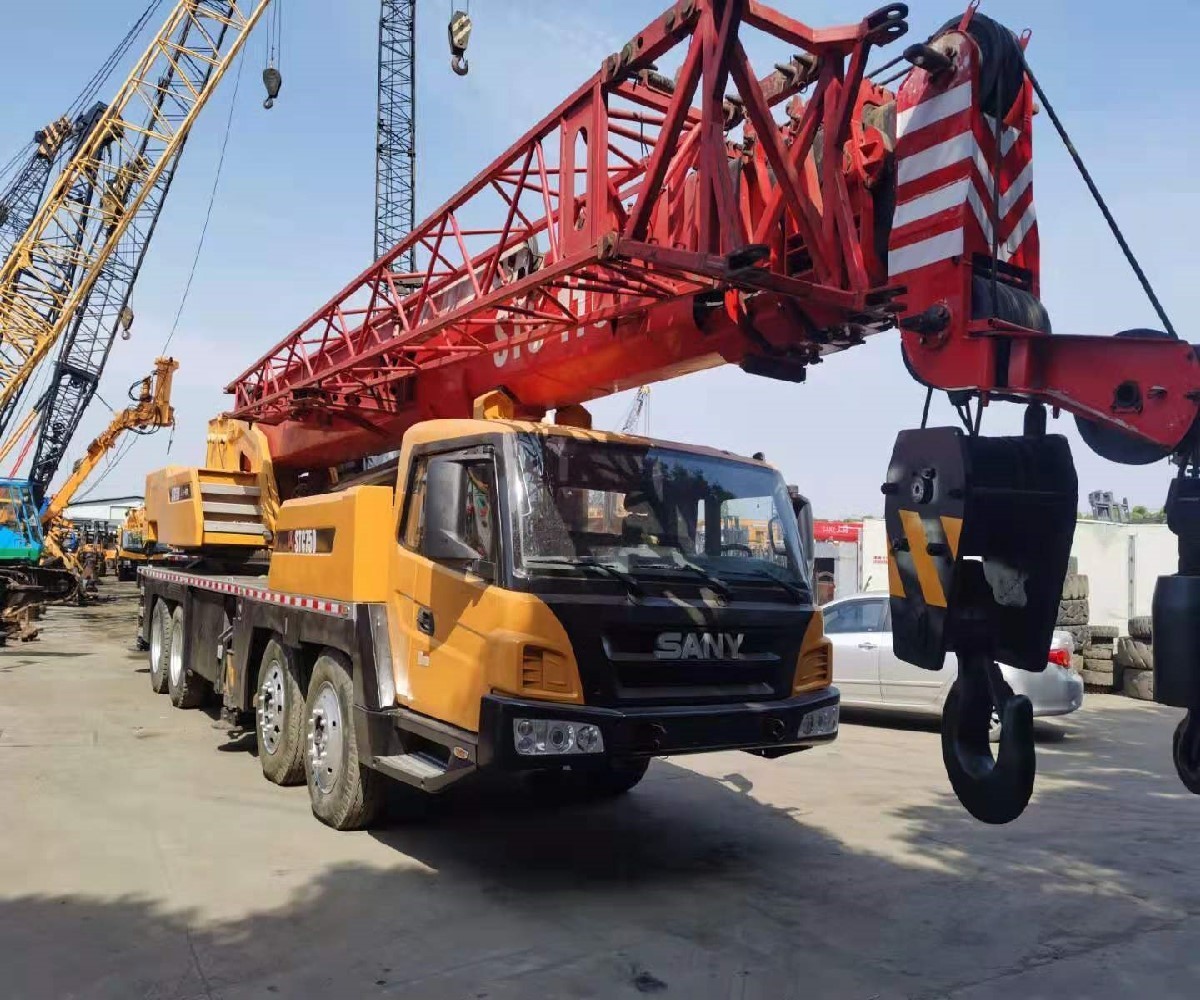

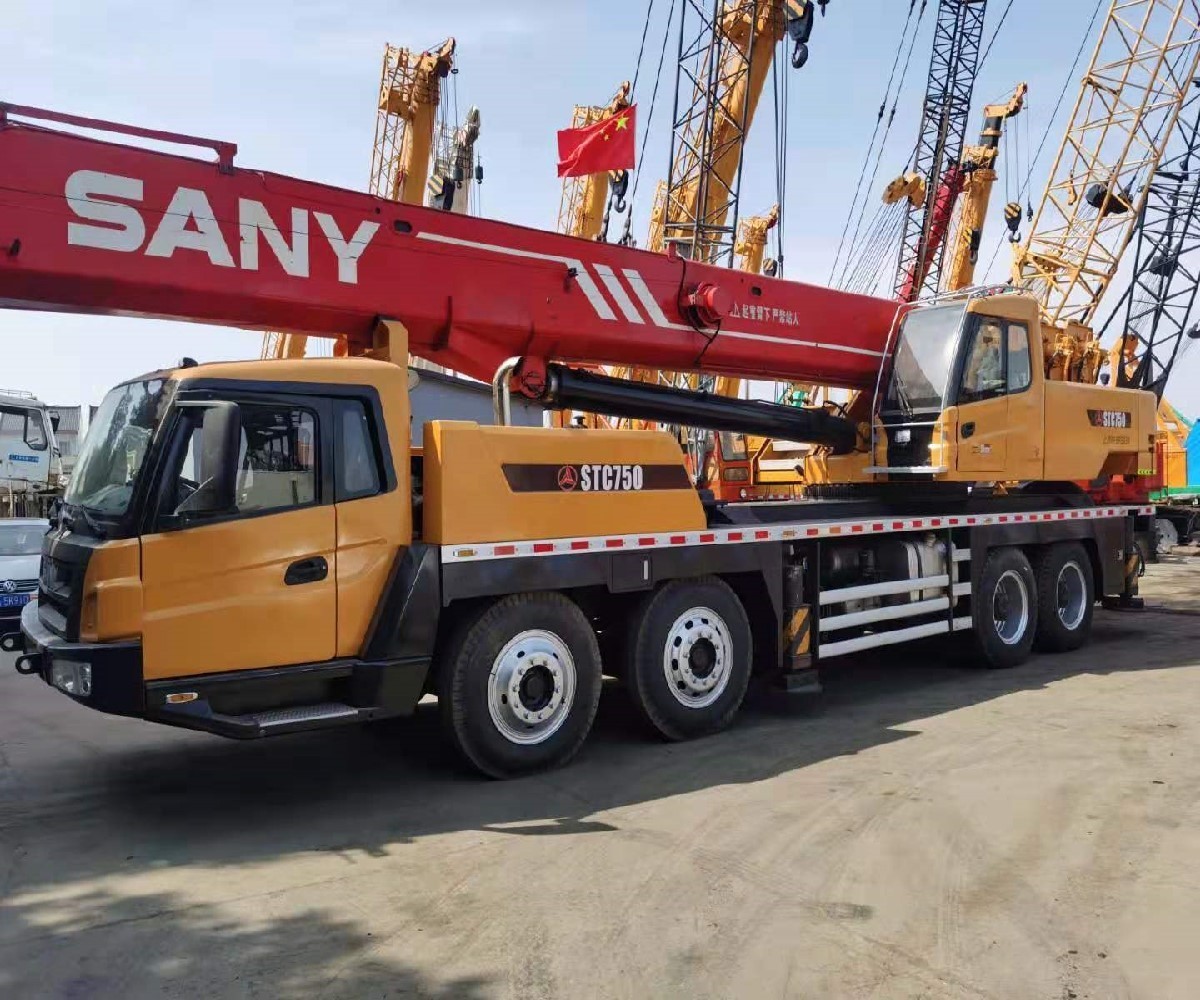

Sany Used truck crane 75 Tons 274 KW Rpm Rated Power
| Sany STC750S Main Parameter | |||
| Part Descreption | Parameter | ||
| Capacity | Max. lifting capacity | t | 75 |
| Dimensions | Overall length/width/height | mm | 14695*2750*3830mm |
| Gross weight | kg | 45340 | |
| Power | Max. engine power | kW/rpm | 274 |
| Max. engine output tourque | N.m | 1550 | |
| Traveling | Max.traveling speed | km/h | 80 |
| Min.turning radius | m | 12 | |
| Approvach angle | ° | 20 | |
| Departure angle | ° | 12 | |
| Max.gradeability | % | 37 | |
Fuel consumption per hundred kilometers | L | 55 | |
| Main Parameters | Temperature range | – 20 ℃ ~ +45 ℃ | |
Min.rated range | m |
3 | |
Tail slewing radius of swingtable | m | 4.116 | |
Boom section | 5-U shape | ||
Full-extend boom | m | 45 | |
Full-extend boom+jib | m | 61 | |
Outrigger span (Longitudinal×Transversal) | m | 6.1 × 7.6 m | |
Jib offset | m | 0 °,15 °,30 ° | |
Working speed | Max speed, main hoist, single line,no load | m/min | 130 m/min |
Max speed, aux hoist, single line, no load | m/min | 130 m/min | |
Boom's full extending/Retracting time | s | 120 / 130 s | |
Boom's full raising/Lowering time | s | 80 / 80 s | |
| Swing speed | r/min | 2.0 r/min | |
